Les Terry: Penn 50S Conversion to Left Hand

Originally posted on an online forum

Copyright © By Les Terry, Riverside, CA
Reprinted with permission of the author.


Here is how I converted my 50S to left hand.

Here's a link to the schematic....

https://www.mysticparts.com/Assets/images/pennparts/schematics/50s.pdf

Order Parts for the 50S: https://www.mysticparts.com/PennParts/Penn50S.aspx

To change the 50S to left hand.
Remove end plate. Remove 2 springs. Bend springs in opposite radius. Bend flang 180° so that it mounts in the opposite direction. Then turn locks around 180°.

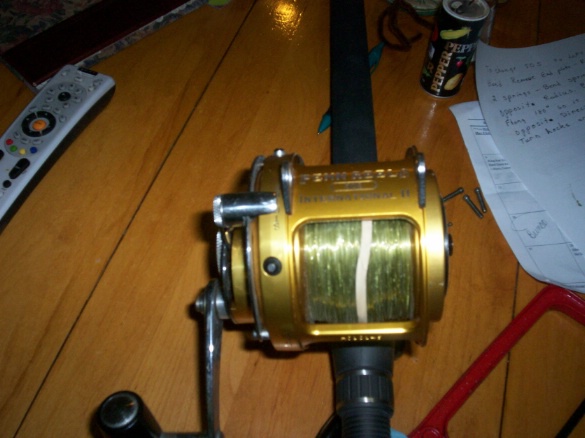

Penn 50S
Click image to view full size

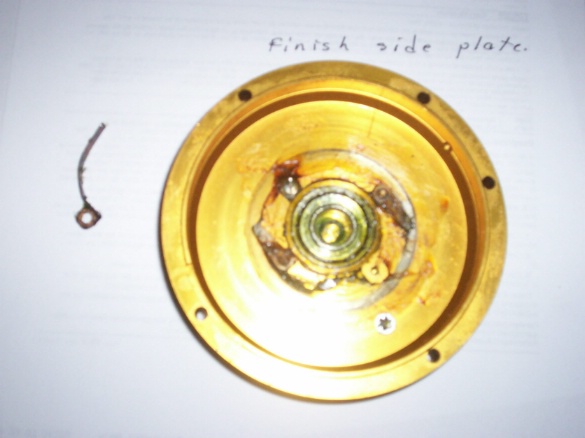

Penn 50S
Click image to view full size

Penn 50S
Click image to view full size

Penn 50S
Click image to view full size

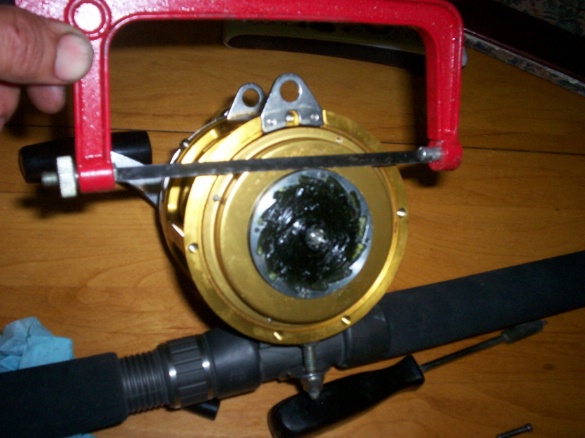

Move gear plate and handle to left side. Put spool back in, leave reel on fishing pole and mount in a vise. Turn the handle to turn the spool. Hold hacksaw on gear to cut off gear teeth ring. Turn gear ring over and remount using aluminum JB Weld. Let dry and then drill and install dowl pins. Remover gear and plate before installing JB Weld.

Please note - proceed with this modification at your own risk. ~ Staff at Scott's MysticParts.com
